Local-first internal control console and product prototype
← Case Studies
Internal tool / Product prototype / Real estate operations
TerritoryOps Spain
A local-first internal control console for tracking real estate opportunities across Spain.
TerritoryOps combines geospatial visibility, table-based review, pipeline tracking, and attention logic into a private operational atlas.
Prototype scope: local browser data, optional demo records, no backend or authentication.
Project Snapshot
What the system is
Use case
Real estate scouting, follow-up control, deal-stage review, and location intelligence
Role
Product framing, workflow design, UX structure, data validation, and implementation
Stack
Next.js, React, TypeScript, Tailwind CSS, Leaflet, OpenStreetMap, Vitest
Status
Public prototype; no backend, authentication, team sync, or paid APIs
Business Context
The workflow problem behind the project
Real estate scouting often begins as a loose collection of Google Maps links, notes, contact details, rough valuations, follow-up dates, and uncertain deal states. As that list grows, the operational question becomes harder: what is controlled, what is being negotiated, what needs attention, and what can be ignored? TerritoryOps was built as a prototype for that specific control problem, not as a marketplace or production enterprise platform.
System / Solution
How the workflow is bounded
The product brings one local dataset into three complementary views. The map establishes spatial context, the table supports dense operational review, and the pipeline makes deal stages legible. Quick capture, dossier details, attention rules, validation, and JSON/CSV portability keep the workflow useful without requiring backend infrastructure.

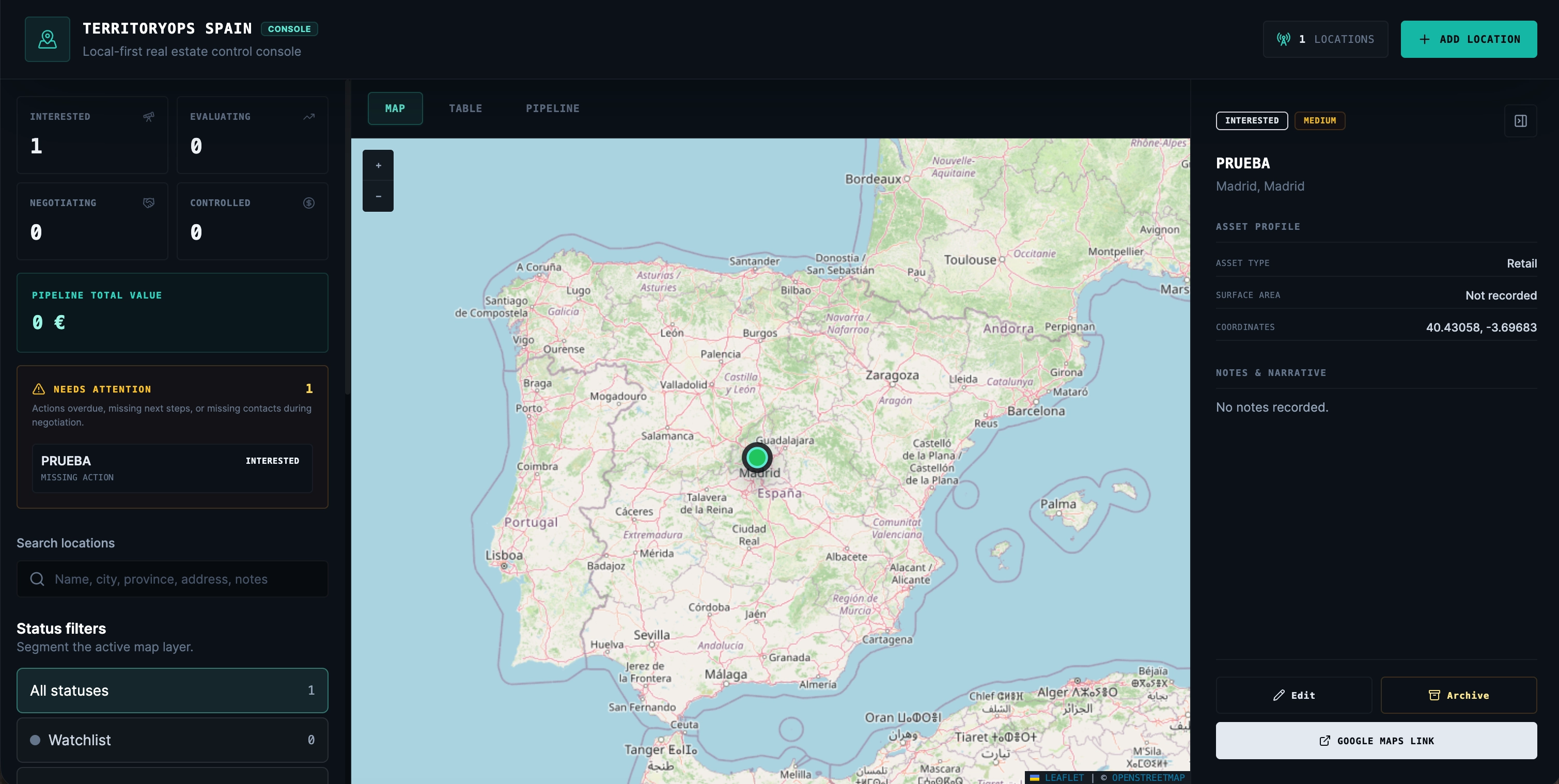

Map view
Spain-centered location visibility with shared filters and status context.
Table view
Sortable operational detail for values, contacts, follow-ups, and warnings.
Pipeline view
Stage-based scanning across watchlist, interest, evaluation, negotiation, control, and passed locations.
Quick capture
Focused entry for names, places, coordinates, Google Maps links, and initial status.
Local persistence
Browser storage keeps setup private, lightweight, and immediately usable.
Attention logic
Overdue or missing actions and negotiations without contacts become direct drilldowns.
Portable data
Validated JSON and CSV import/export support backup, transfer, and inspection.
Design logic / Build decisions
Simple by design, deliberate in operation
Internal tools should remove operational friction before they add infrastructure. The interface is composed like a private atlas and control room: restrained, information-dense, and focused on capture, status, and visible next actions.
Local-first before backend
Workflow validation came before accounts, databases, or synchronization complexity.
Three complementary views
Map answers where, table answers what, and pipeline answers where each opportunity stands.
Attention as logic
Missing and overdue follow-ups are actionable records, not a decorative metric.
Portable by default
CSV and JSON keep the local dataset inspectable, transferable, and easy to back up.
Manual status changes
No drag-and-drop yet. Stage changes stay intentional through the edit flow.
Infrastructure postponed
Supabase, auth, audit logs, and team sync remain future options, not premature foundations.
Core features
A compact operating system for place-based opportunities
Each capability supports the same question: what deserves attention, and what is the next responsible action?
Map view
Spatial awareness across Spain with status-colored markers.
Table view
Sortable, dense review of operational and deal fields.
Pipeline view
Fast scanning across the business-control status model.
Quick capture
Focused entry with coordinate and Google Maps support.
Asset dossier drawer
Place, deal, contact, follow-up, and decision context in one panel.
Needs-attention drilldown
Clickable overdue, missing-action, and missing-contact records.
Import / export
JSON and CSV portability with proper escaping and compatibility.
Data validation
Business-number, probability, coordinate, and duplicate checks.
Local-first persistence
Automatic browser restoration after edits, imports, and view changes.
CI and test coverage
64 tests plus lint, typecheck, test, and build in GitHub Actions.
Technical implementation
Engineering discipline without platform overhead
The prototype uses a modern frontend stack and explicit data rules while keeping the operating model intentionally local. Engineering proof supports the product story without turning the case study into repository documentation.
64Automated tests
0Backend services
0Paid APIs
Next.js 16React 19TypeScriptTailwind CSSLeafletOpenStreetMaplocalStorageVitestESLintGitHub Actions
A typed RealEstateLocation model keeps identity, place, business-control, contact, follow-up, and audit fields explicit.
Shared filters persist across Map, Table, and Pipeline, so switching views never resets operational context.
Import validation rejects invalid business values while preserving valid zero values and legacy exports.
General build discipline was informed by the awesome-vibe-coding workflow collection, used as inspiration rather than a dependency or product foundation.
Visual proof
Screenshot slots prepared for the real interface
The case study does not fabricate product screens. These composed placeholders preserve the page rhythm until real captures are added.
01Map view
/images/case-studies/territoryops/map.png02Table view
/images/case-studies/territoryops/table.png03Pipeline view
/images/case-studies/territoryops/pipeline.png04Asset drawer
/images/case-studies/territoryops/drawer.png05Add location form
/images/case-studies/territoryops/add-location.png06Needs-attention drilldown
/images/case-studies/territoryops/attention.pngOutcome / Why it matters
From scattered research to an operating workflow
TerritoryOps demonstrates that a small internal tool can make business logic visible without imitating a large platform.
- Turns loose location research into a structured map, table, and pipeline.
- Makes follow-ups and missing operational context visible.
- Separates passive interest from active evaluation and negotiation.
- Keeps the prototype private, portable, and easy to reason about.
What I would build next
Add infrastructure only when the workflow earns it
The roadmap stays modest and follows validated operating needs rather than feature accumulation.
01Saved views02Read-only demo mode03Supabase sync04Authentication05Audit log06Attachments07Optional drag-and-drop
